An Axial Helical Antenna

This is one type helical antenna where the main radiation mode is along the axis or boom. There is also a Hansen-Woodyard version which has a narrower main beam but larger side lobes.

As usual all results: AS IS, no responsibility assumed.

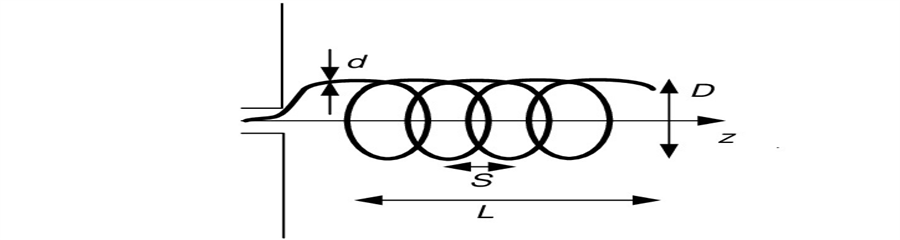

A piece of a helical antenna

Yagi Antenna Diagram

Basic Helical Antenna Parameters

Dimensions are wire centre to centre.

For a standard custom design both S and D will be used.

Here we also design an optimum antenna using the established criteria. This means that the optimum pitch will be determined (ie: S ignored)giving rise to the length L. Max-Min boundaries will be given the wire diameter d and the the ground plane sizes.

We also include the dimensions of a suitable quarter wave line to match the antenna to the typical 50 Ohm line.
